Total Spectrum ULTRA (7 Wave 480 LEDs)
The Total Spectrum ULTRA is an advanced red light therapy system featuring 480 LEDs and a versatile adjustable electric stand designed for both standing and lying-down sessions. With seven wavelengths, customizable pulsing, multiple preset modes, and a multi-angle optical system, the ULTRA provides broad-area light coverage for convenient home wellness routines.
Designed for users who want both targeted and full-body coverage, the ULTRA combines a high-output LED panel with touch and voice controls, Bluetooth music integration, and an adjustable electric stand. Its combination of multiple wavelengths and positioning options makes it suitable for flexible personal wellness and light-therapy routines.

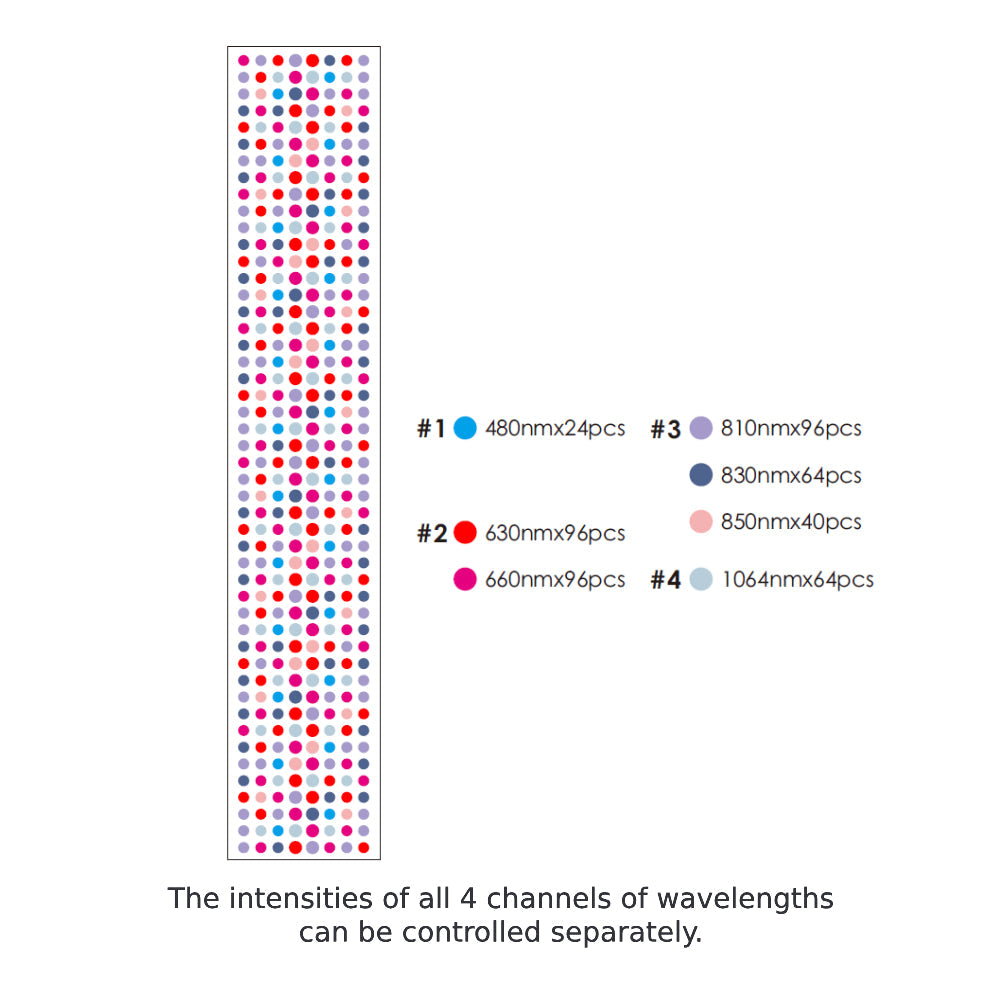

7-Wavelength Light Spectrum
- 480nm Blue Light – 5% Density: Provides blue-light exposure for surface-level skincare applications.
- 630nm Red Light – 20% Density: Provides red-light exposure for targeted light therapy and skincare routines.
- 660nm Red Light – 20% Density: Adds additional red-light coverage for customized sessions.
- 810nm Near-Infrared – 20% Density: Provides near-infrared light for deeper light-based wellness applications.
- 830nm Near-Infrared – 13% Density: Adds another near-infrared wavelength to the device's broad-spectrum configuration.
- 850nm Near-Infrared – 8% Density: Provides additional near-infrared coverage for customizable sessions.
- 1064nm Infrared – 14% Density: Provides a deeper infrared wavelength for targeted light-based wellness routines.
High-Output Irradiance & Performance
- 174 mW/cm² at 8 Inches: Measured using a Solar Power Meter.
- 119.28 mW/cm² at 6 Inches: Measured using a spectrometer.

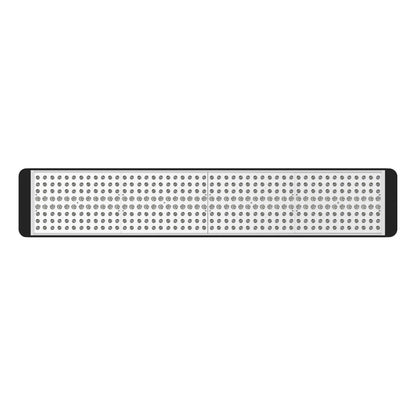

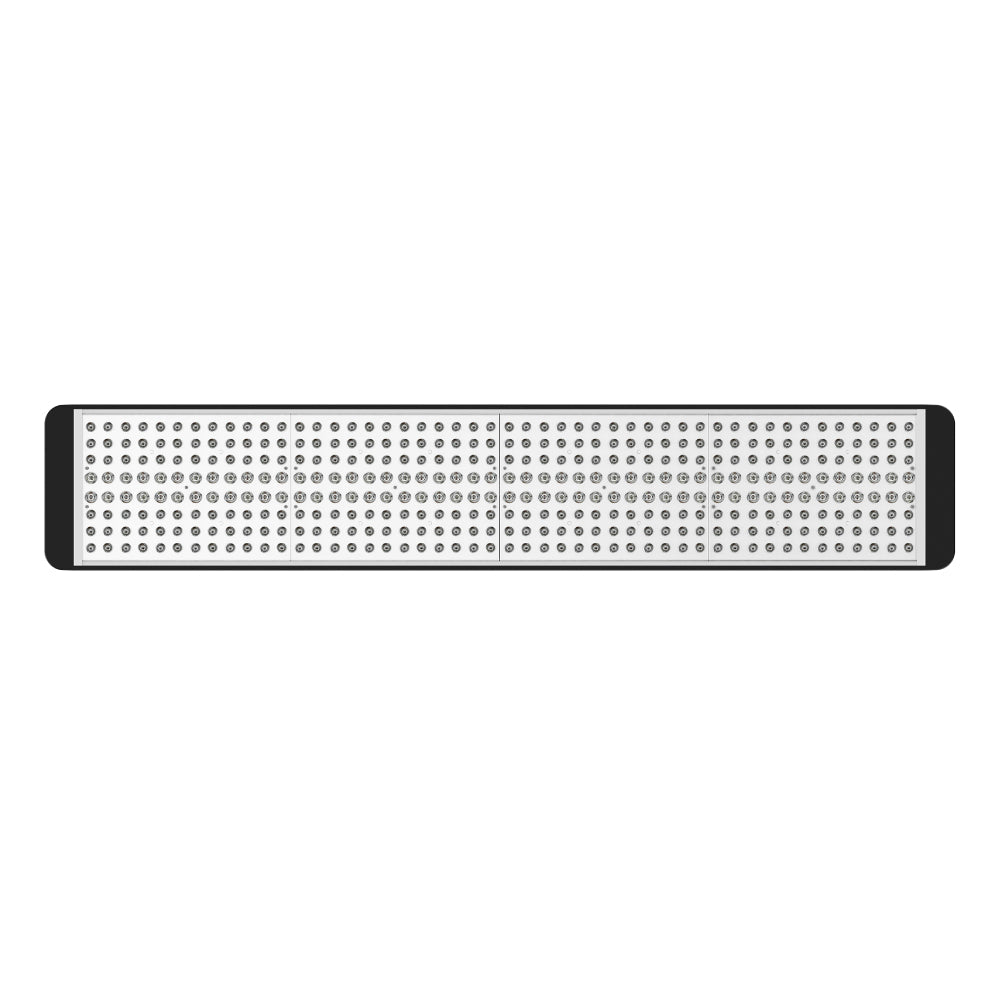

- 480 LEDs: Provides extensive light coverage for larger body areas and full-body routines.
- Broad-Spectrum Configuration: Combines blue, red, near-infrared, and infrared wavelengths in a single panel.
Safety & Low-EMF Design
- Flicker-Free Operation: Designed without visible strobing during normal operation.
- Low EMF Output: Approximately 0.0 μT at 6 inches or greater based on the manufacturer's stated testing.
- Protective Eyewear Included: Includes protective reading glasses and blackout goggles.

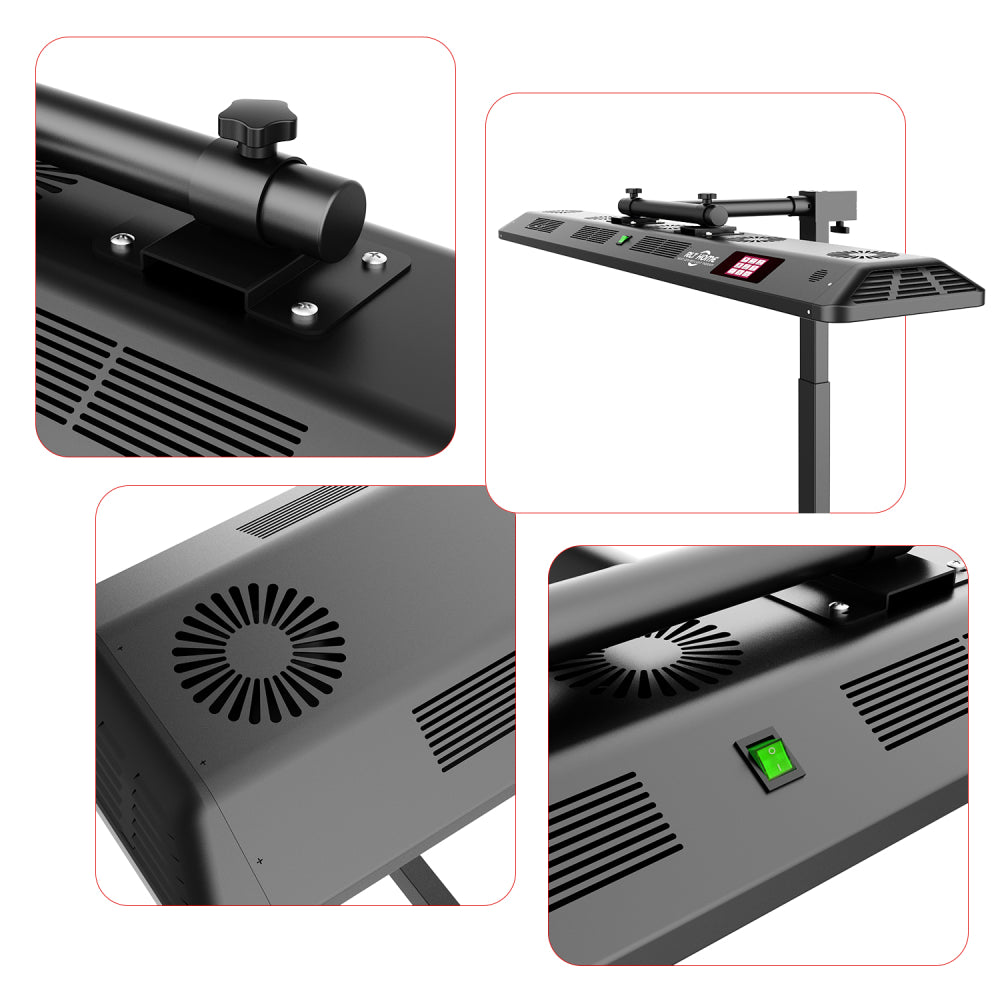

- Durable Housing: The system uses a sturdy iron stand and housing structure designed for regular home use.
Adjustable Pulsing & Performance Modes
- 0–5,000 Hz Pulsing Range: Provides adjustable pulsing frequencies for customizable sessions.
- 9 Prebuilt Performance Modes: Offers convenient preset configurations for different wellness routines.
- Custom Mode: Allows individual adjustment of intensity and pulsing across four channels: red, blue, near-infrared, and 1064nm.

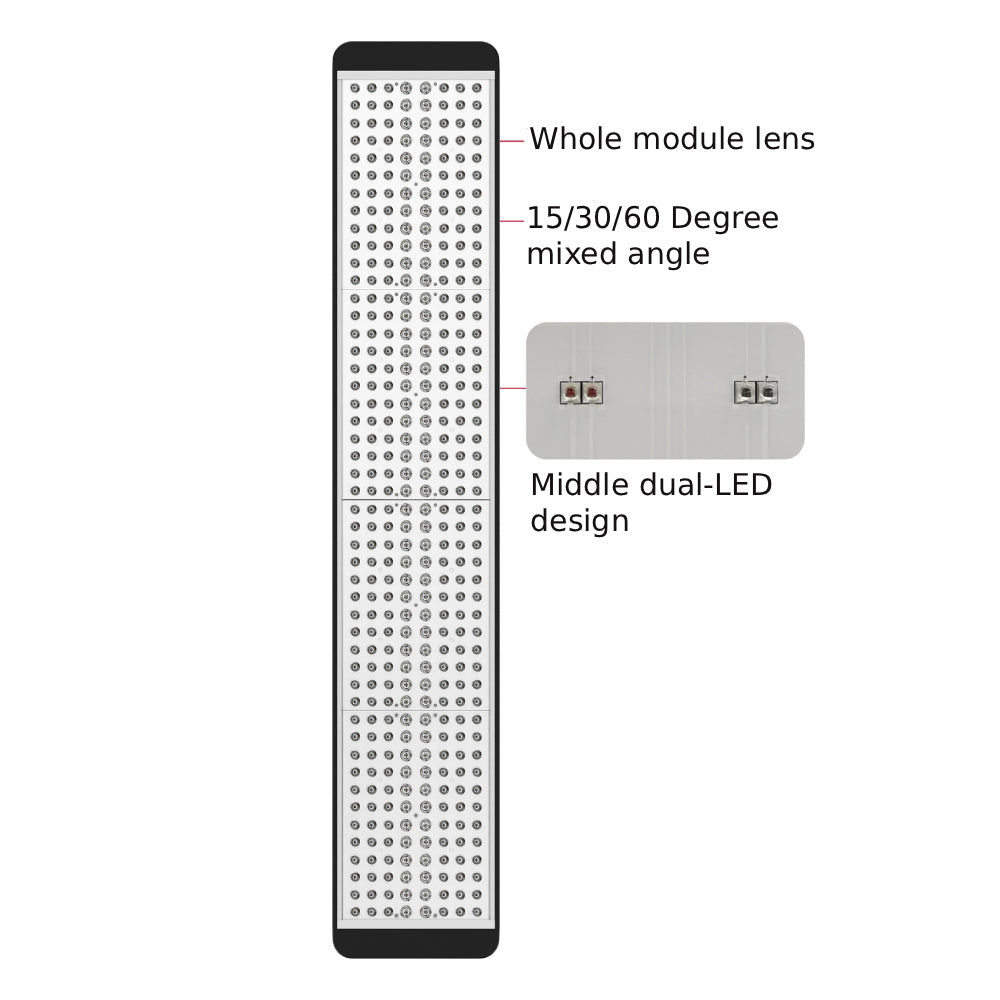

Multi-Angle Optical System
The ULTRA uses three beam angles designed to balance concentrated intensity with broad-area coverage:
- 30° High-Potency Core: Concentrates light toward the central area of the body.
- 60° Uniform Coverage: Uses wider inner lenses to provide broader coverage across the body.
- 15° Focused Edges: Uses narrower outer lenses to direct light toward the intended coverage area.

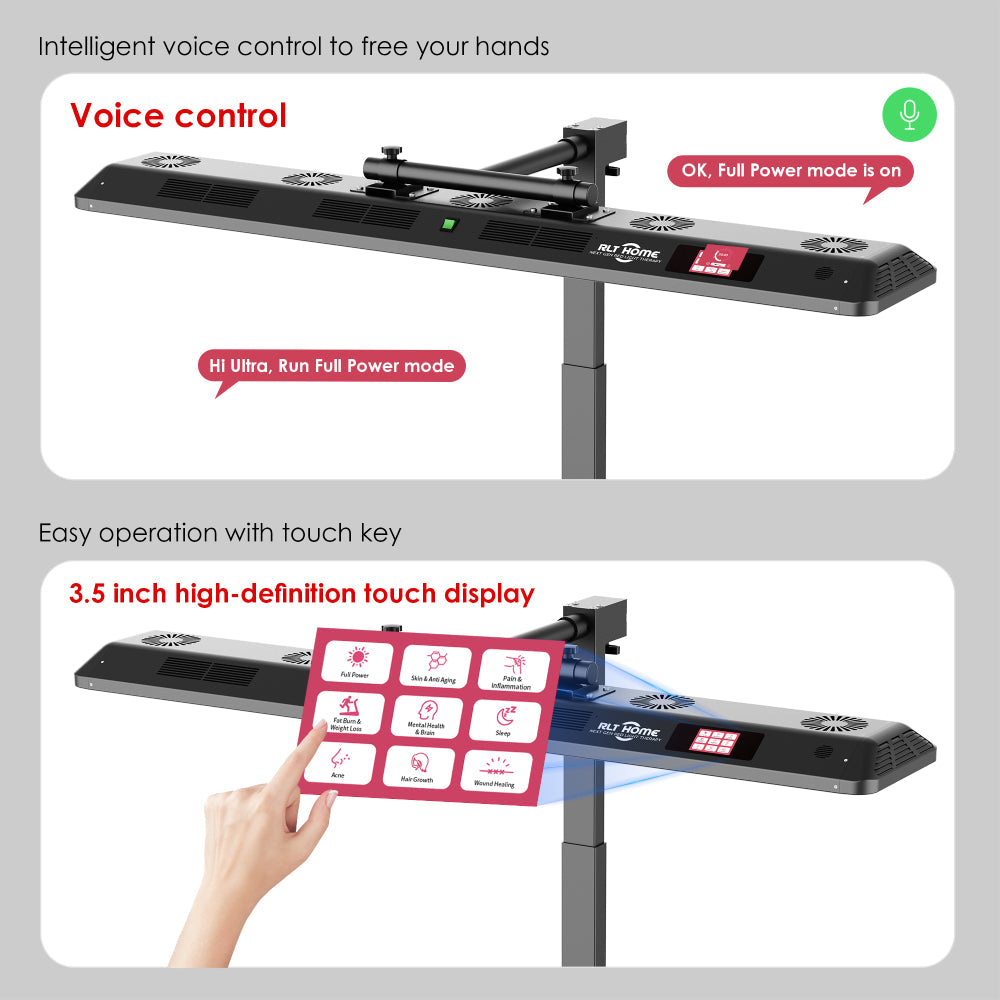

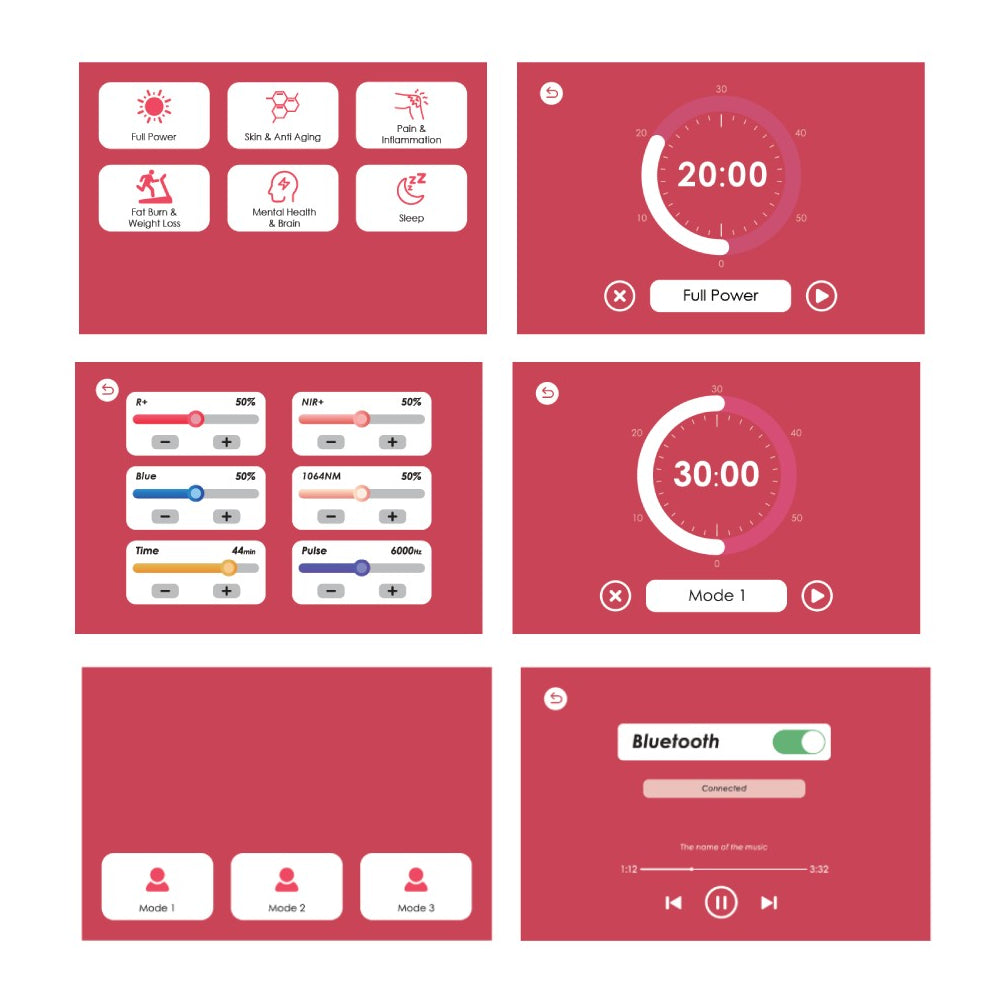

Touch, Voice & Positioning Controls
- Touch Interface: Provides direct control of device settings.
- Voice Control: Allows compatible functions to be controlled without a conventional remote.
- Bluetooth Music Integration: Adds convenient audio functionality during sessions.

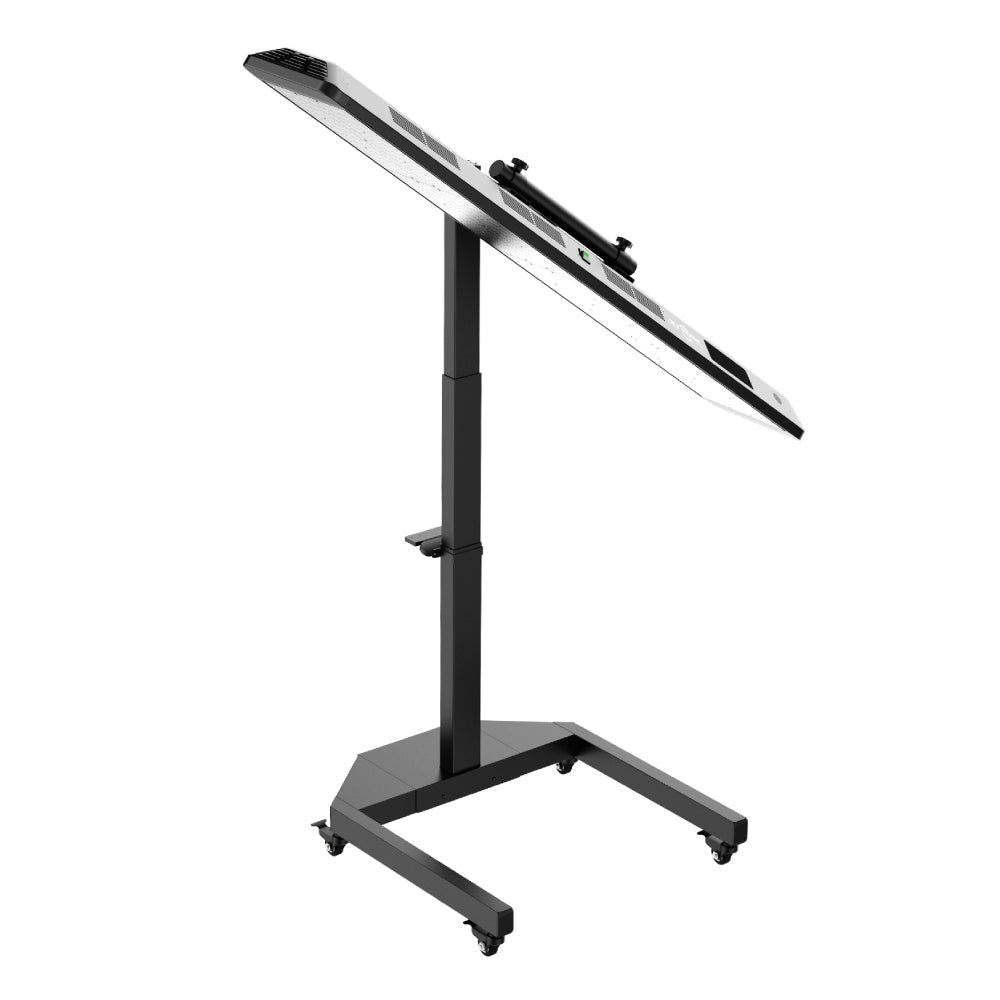

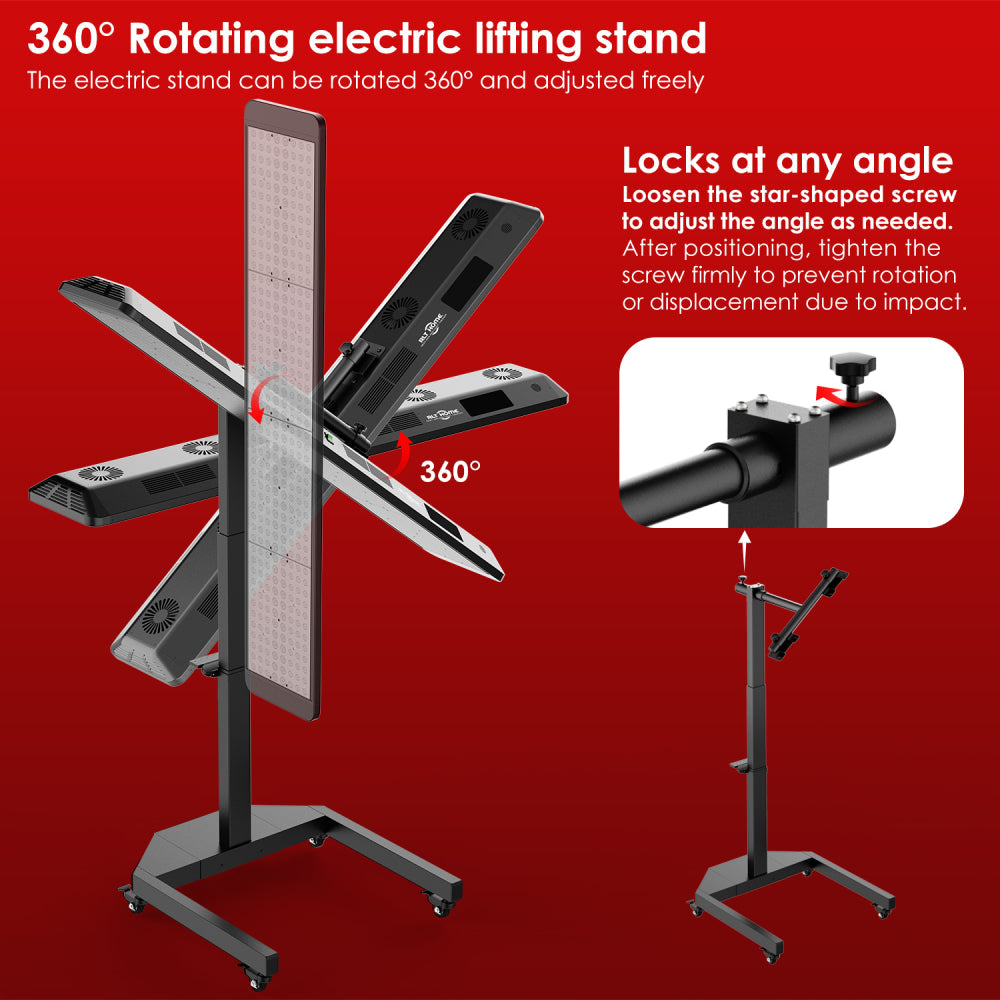

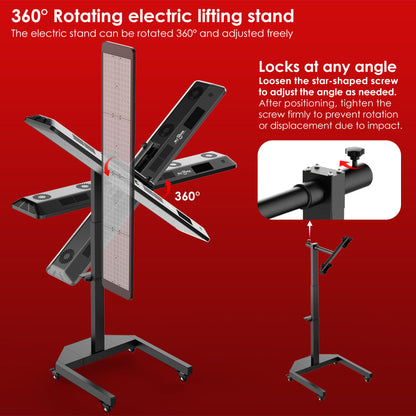

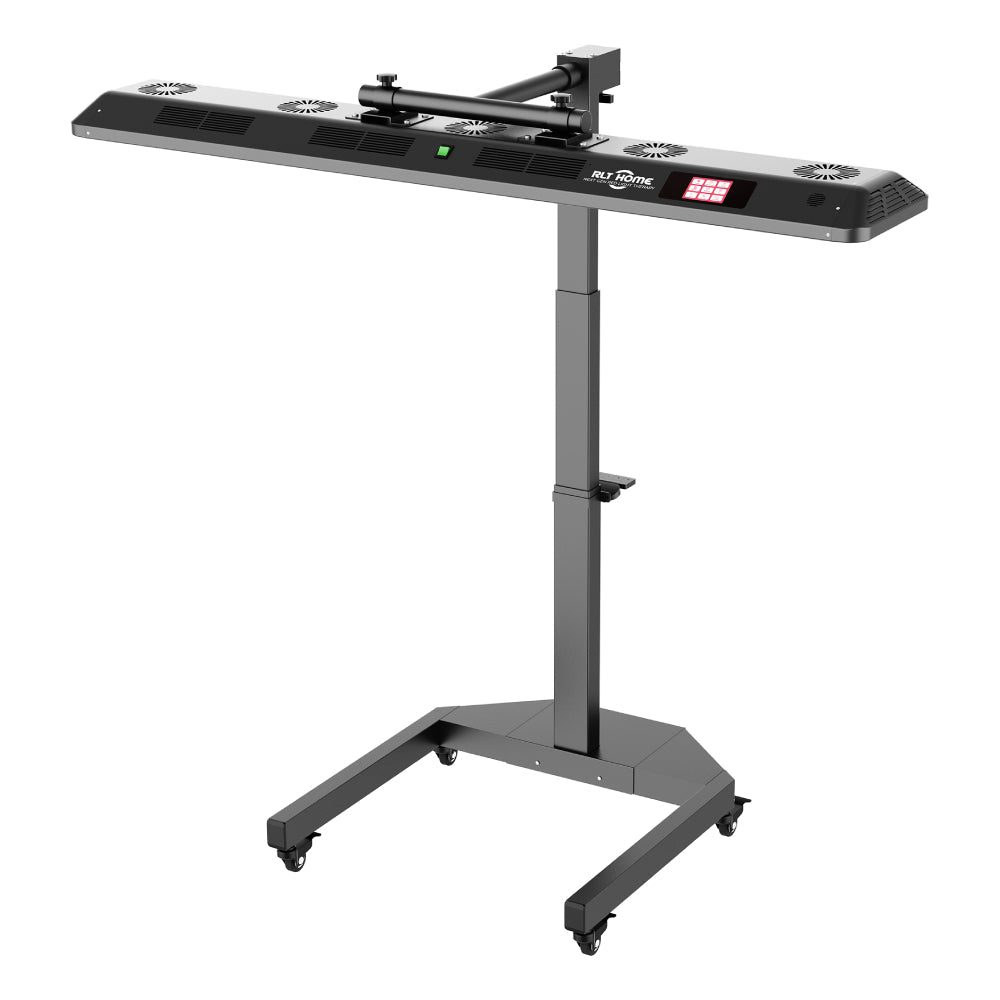

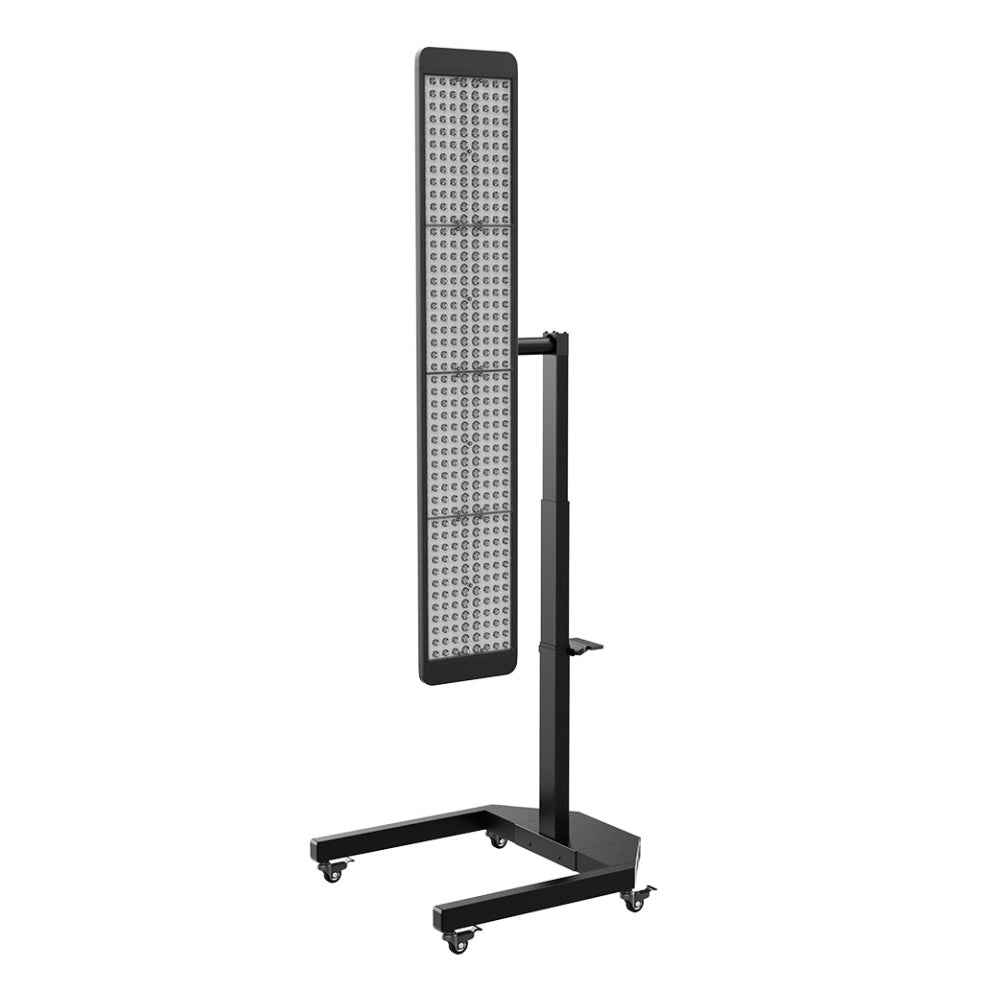

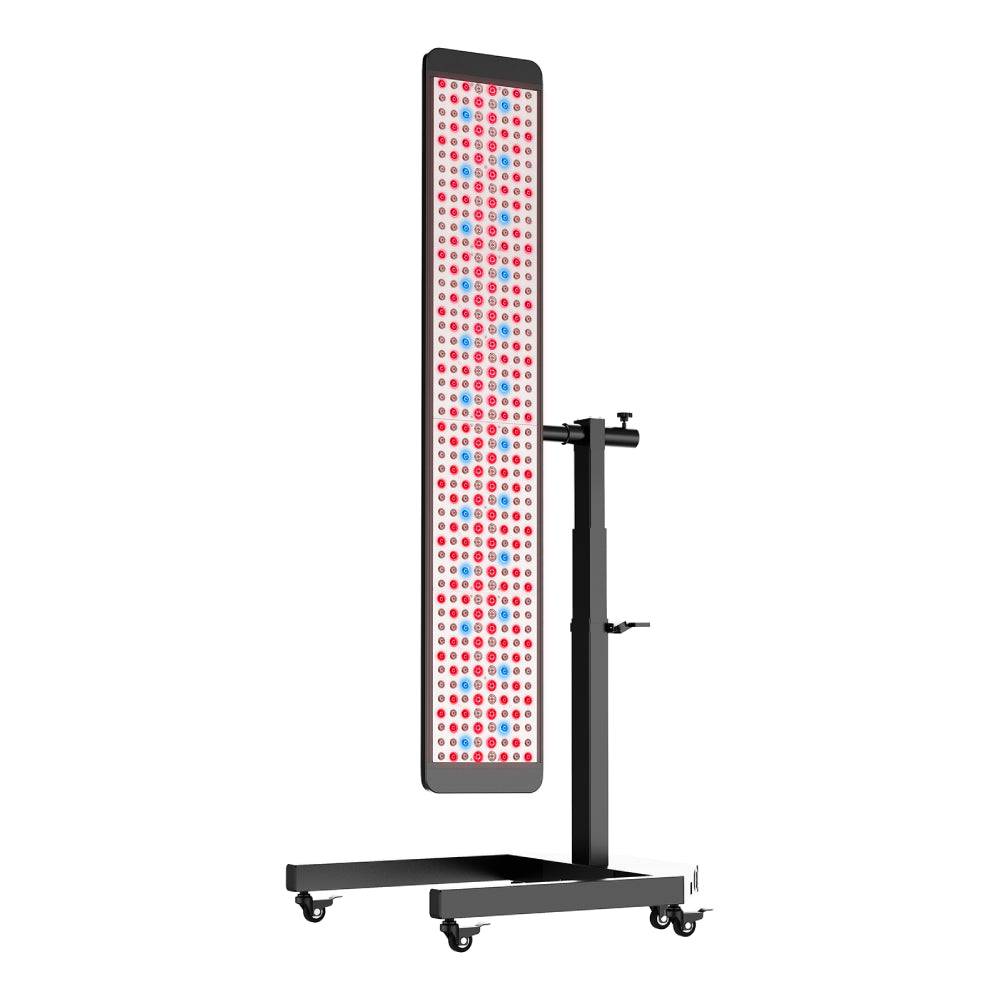

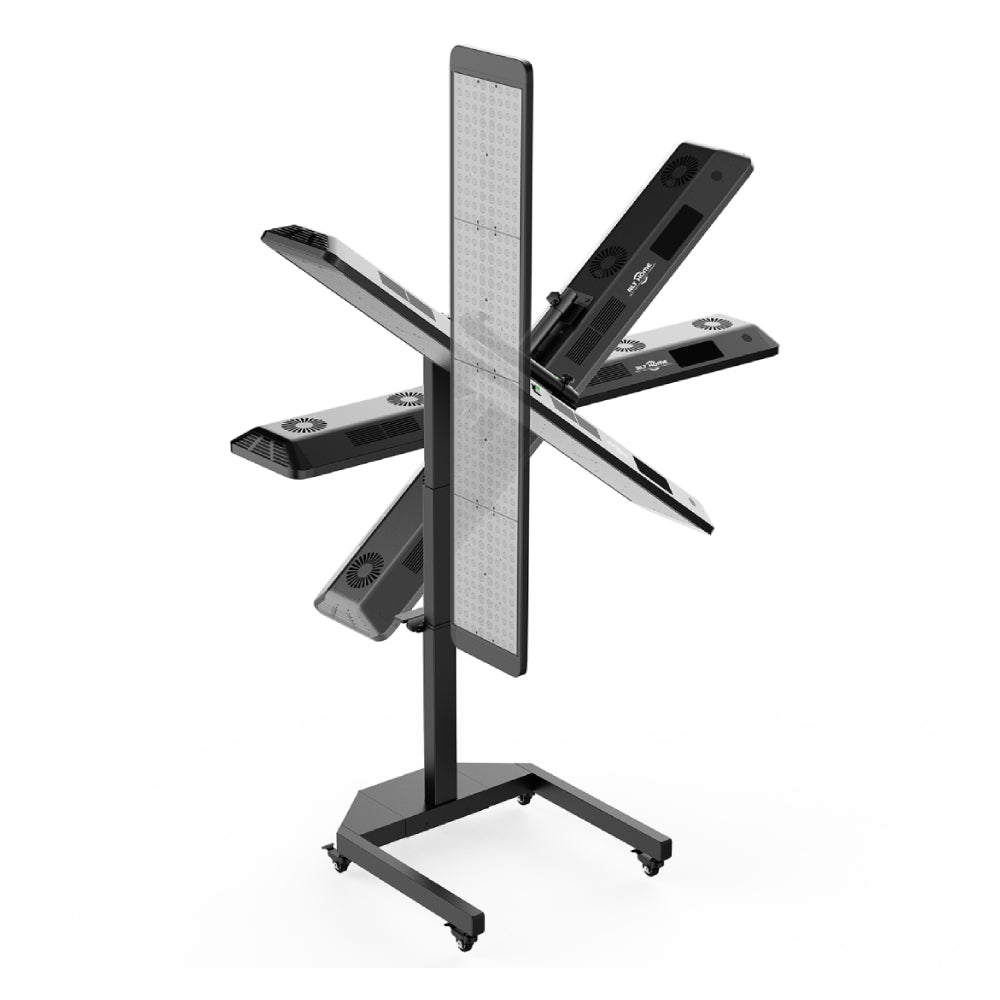

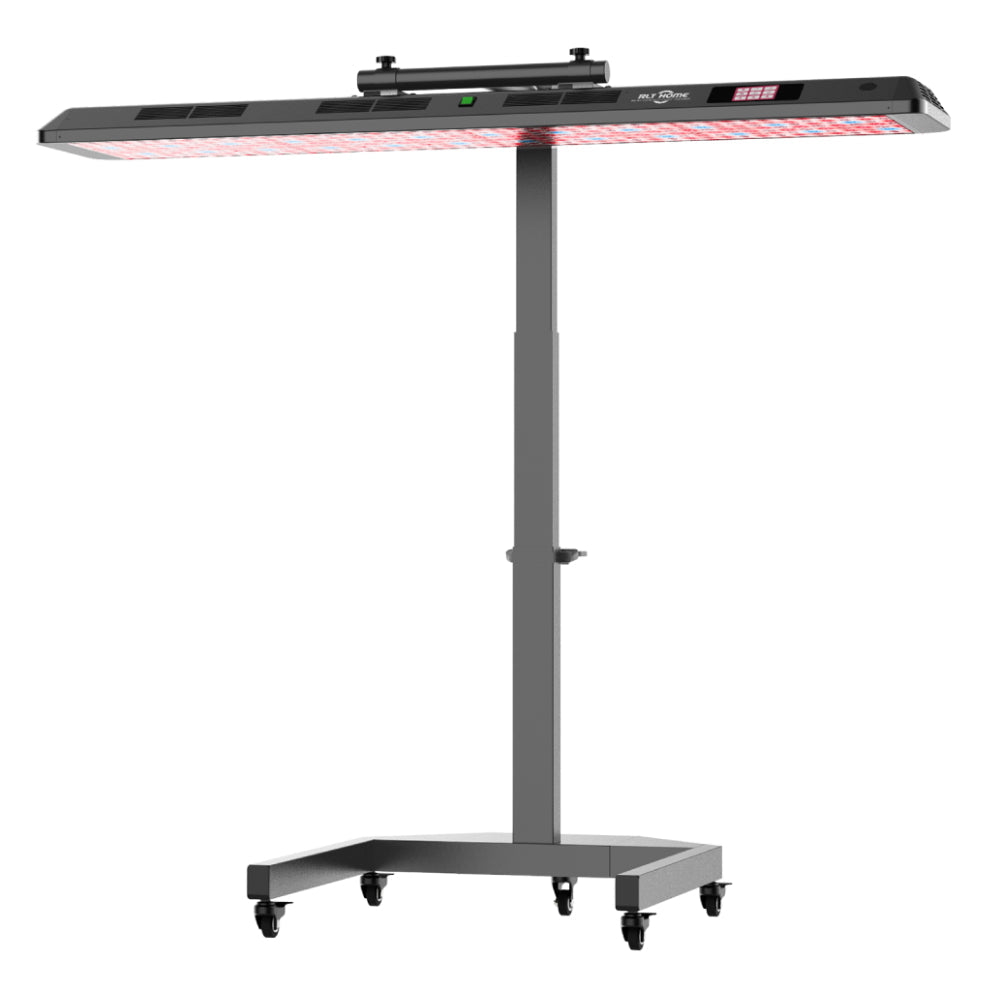

- Adjustable Electric Stand: Allows the panel to be positioned for standing or lying-down use.
- 100,000-Hour LED Lifespan: Designed for long-term LED performance under specified operating conditions.
- Worldwide Voltage Compatibility: Supports AC 100–240V input for use with compatible electrical systems.
Compliance & Certifications
- RoHS Certified: The manufacturer's RoHS certification indicates compliance with applicable restrictions on specified hazardous substances.
- CE Certified: CE certifications indicate conformity with applicable European electrical safety and electromagnetic compatibility requirements.
Technical Specifications
| Feature / Metric | Specification |
|---|---|
| Product Name | Total Spectrum ULTRA |
| LED Count | 480 LEDs |
| Wavelengths | 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, 1064nm |
| 480nm Blue Light Density | 5% |
| 630nm Red Light Density | 20% |
| 660nm Red Light Density | 20% |
| 810nm Near-Infrared Density | 20% |
| 830nm Near-Infrared Density | 13% |
| 850nm Near-Infrared Density | 8% |
| 1064nm Infrared Density | 14% |
| Irradiance at 8 Inches | 174 mW/cm² |
| Irradiance at 6 Inches | 119.28 mW/cm² |
| EMF at 6 Inches or Greater | Approximately 0.0 μT |
| Pulsing Range | 0–5,000 Hz |
| Preset Modes | 9 Prebuilt Performance Modes |
| Beam Angles | 15°, 30°, and 60° |
| LED Lifespan | 100,000 Hours |
| Voltage | AC 100–240V |
| Device Material / Housing | Iron |

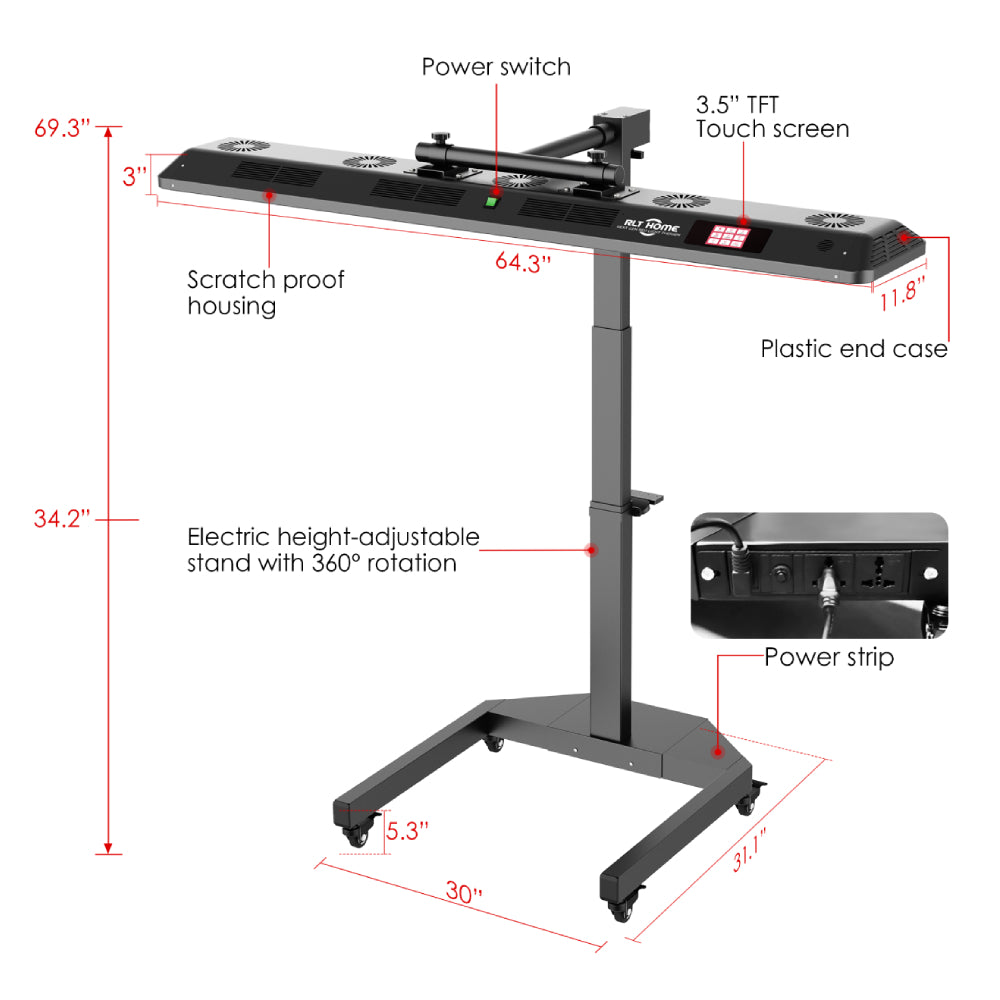

| Device Dimensions | 1635 × 300 × 75 mm / 64.3 × 11.8 × 3 in |
| Device Weight | 18 kg / 39.6 lbs |
| Device Shipping Dimensions | 1810 × 390 × 170 mm / 71 × 15 × 6 in |
| Device Shipping Weight | 23.4 kg / 51.5 lbs |

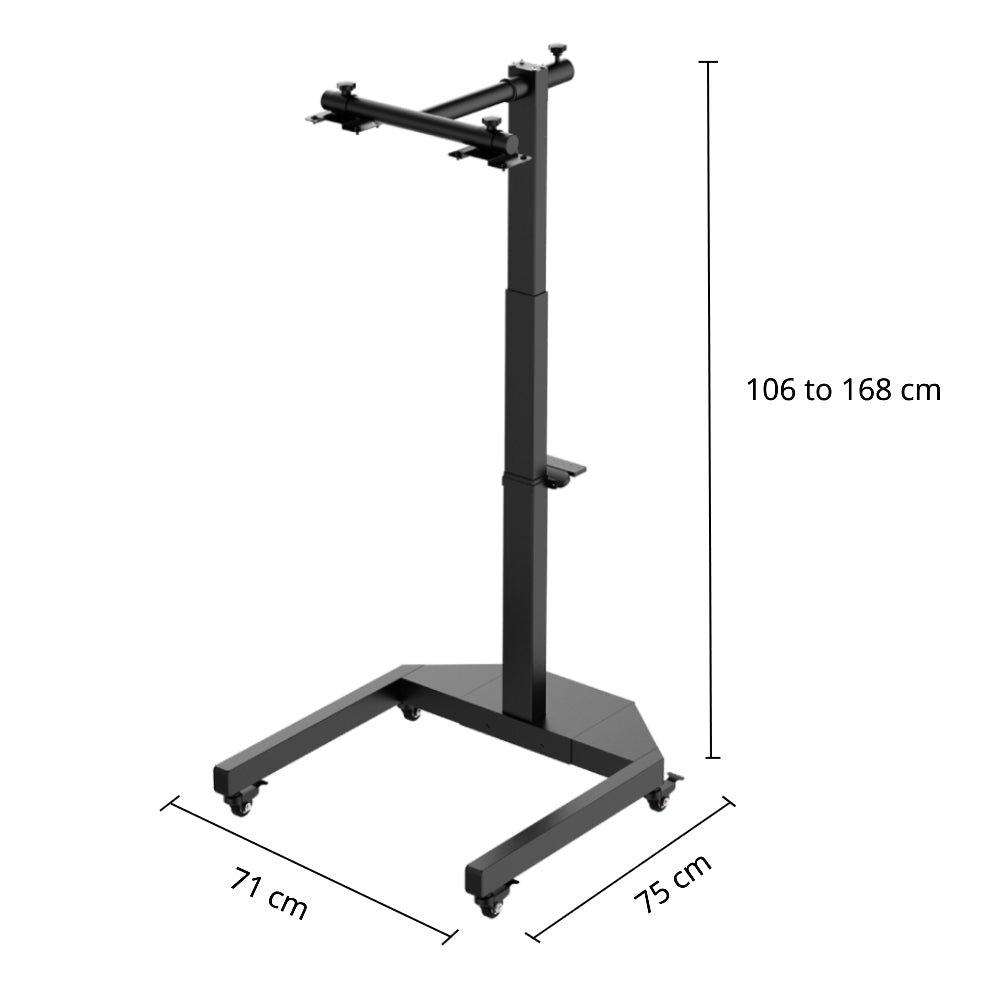

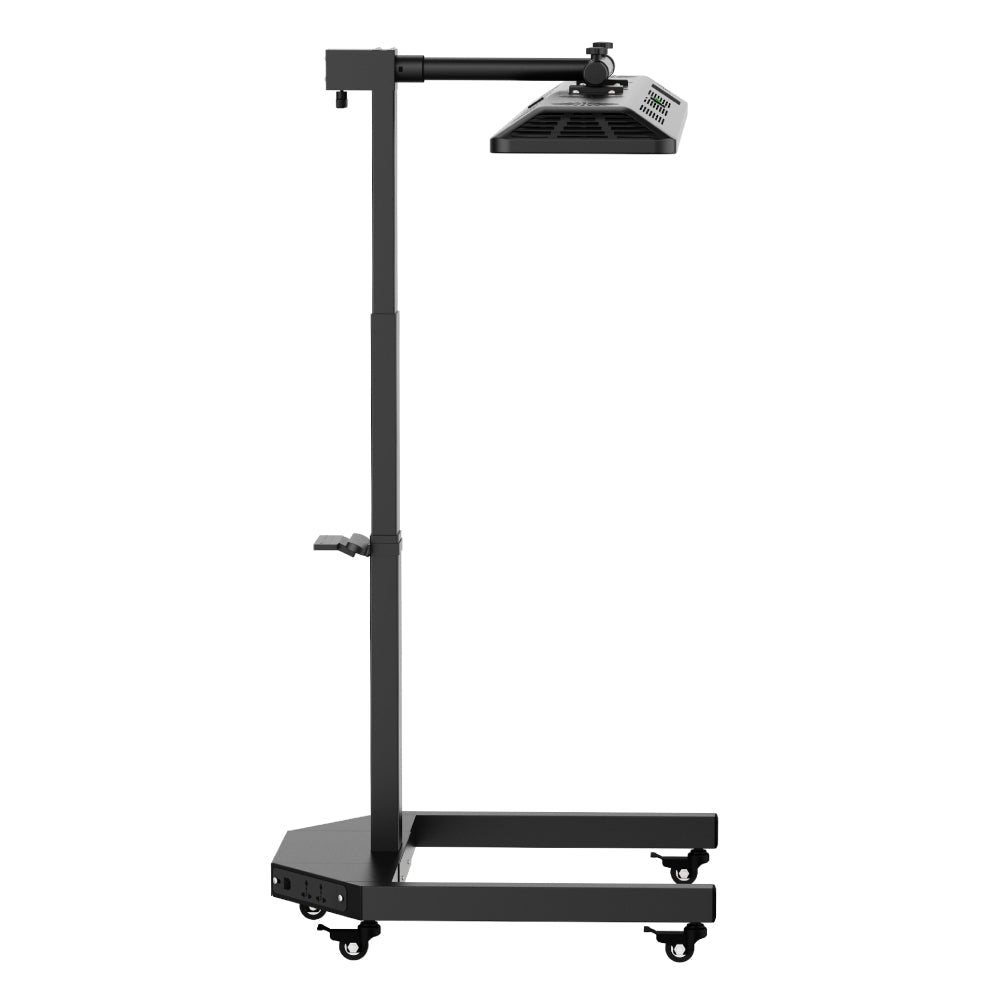

Adjustable Electric Stand Specifications
- Stand Size: 838 × 711 × 127 mm / 33 × 28 × 5 in
- Stand Weight: 24 kg / 53 lbs
- Stand Shipping Size: 840 × 740 × 150 mm / 33 × 29 × 6 in
- Stand Shipping Weight: 27.8 kg / 61.3 lbs
- Installed Footprint: Approximately 3 × 3 feet
- Clearance Under Bed/Massage Table: 5.5 in with wheels / 3 in without wheels
- Installed Height Range: Approximately 29–64 in from the ground
- Stand Material: Iron

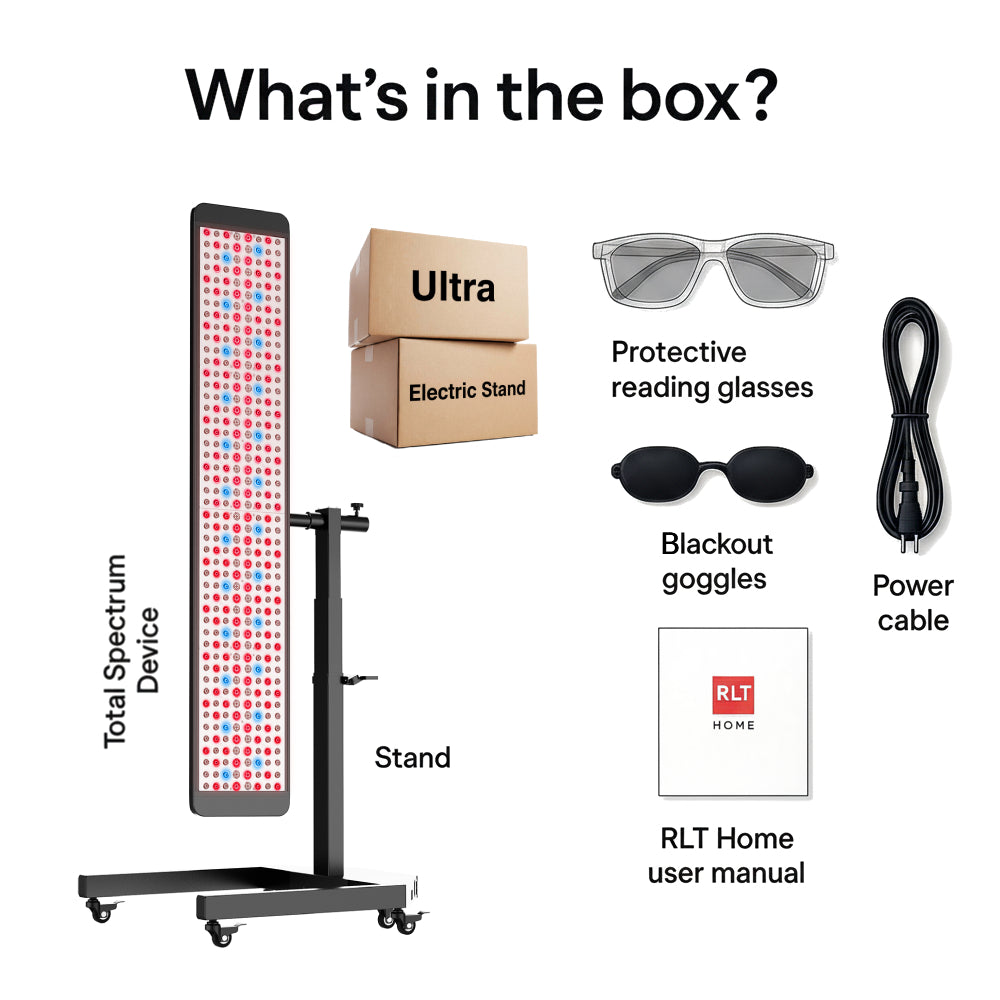

What's Included
- 1 × Total Spectrum ULTRA Device
- 1 × Adjustable Electric Stand
- 1 × Protective Reading Glasses
- 1 × Blackout Goggles
- 1 × RLT Home User Manual
- 1 × Power Cable
Note: The device and adjustable electric stand are shipped separately. Product specifications, measurements, certifications, irradiance readings, and included accessories are based on the supplied product information. This product is intended for light-based wellness and personal-care applications and is not presented as a medical treatment or substitute for professional medical advice.
